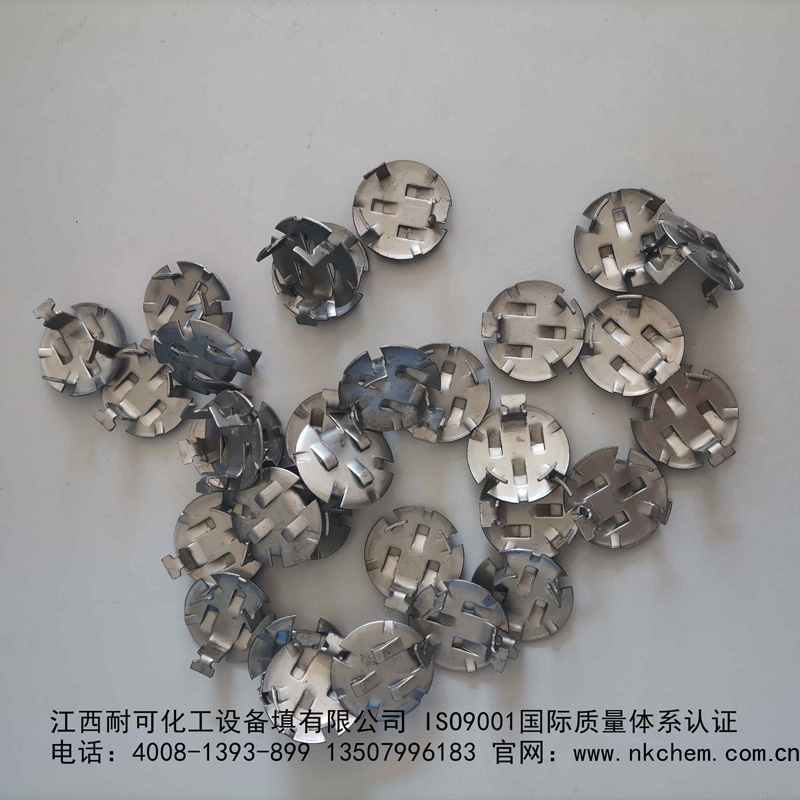

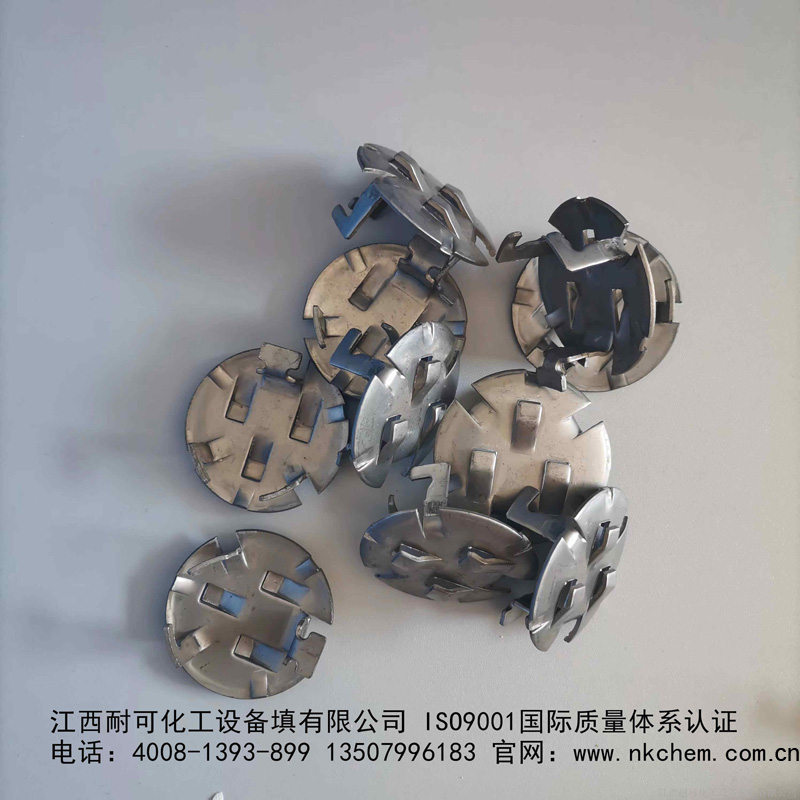

A表示浮阀材质为 1Cr13、B表示浮阀材质为 1Cr18Ni9Ti、C表示浮代材质为 1Cr17Ni12Mo2Ti
|
序号 |
标记 |
基本参数 |
板厚度 |
尺寸 |
材质 |
|||||
|
厚度（S） |
阀重（g） |
H |
L |
A |
b |
c |
||||
|
1 |
FIQ—4A |
1.5 |
24.6 |
4
3
2 |
12.5
11.5
10.5 |
16.5
15.5
14.5 |
9.7 |
5.4 |
34.8 |
1Cr13 |
|
2 |
FIZ—4A |
2 |
32.7 |
10.2 |
5.3 |
34.6 |
||||
|
3 |
FIQ—3A |
1.5 |
24.6 |
9.7 |
5.4 |
33.8 |
1Cr13 |
|||
|
4 |
FIZ—3A |
2 |
32.4 |
10.2 |
5.3 |
33.6 |
||||
|
5 |
FIQ—3B |
1.5 |
24.5 |
9.7 |
5.4 |
33.8 |
1Cr18Ni9Ti |
|||
|
6 |
FIZ—3B |
2 |
33 |
10.2 |
5.3 |
33.6 |
||||
|
7 |
FIQ—3C |
1.5 |
25 |
9.7 |
5.4 |
33.8 |
1Cr18Ni14Mo2Ti |
|||
|
8 |
FIZ—3C |
2 |
33.2 |
10.2 |
5.3 |
33.6 |
||||
|
9 |
FIQ—2B |
1.5 |
24.6 |
9.7 |
5.4 |
32.8 |
1Cr18Ni9Ti |
|||
|
10 |
FIZ—2B |
2 |
32.7 |
10.2 |
5.3 |
32.6 |
||||
|
11 |
FIQ—2C |
1.5 |
24.7 |
9.7 |
5.4 |
32.8 |
1Cr18Ni14Mo2Ti |
|||
|
12 |
FIZ—2C |
2 |
32.9 |
10.2 |
5.3 |
32.6 |
||||
